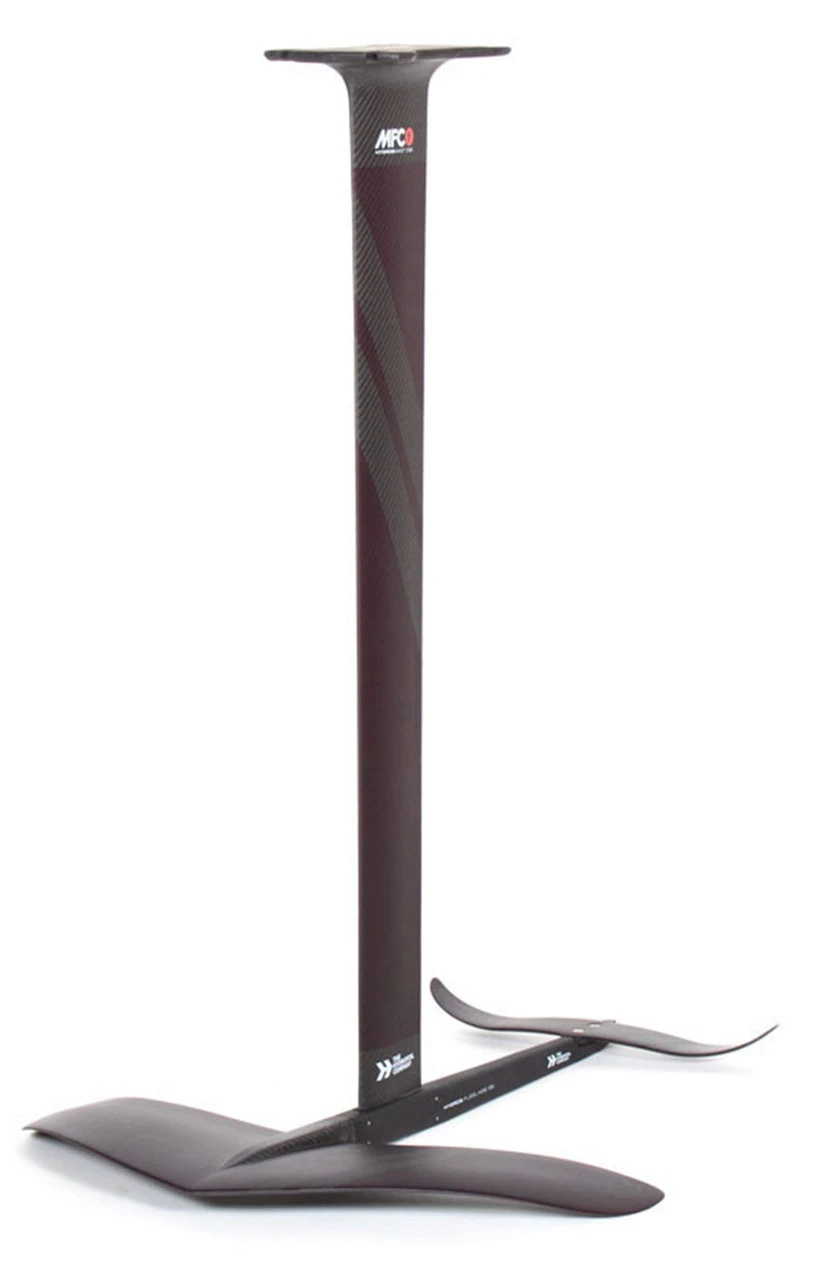

MFC Hydros Complete Foil

MFC Hydros Complete Foil

Sizes: 1000 / 1075 / 1075XL / 1250 / 1250XL / 1400 / 1400XL / 1600 / 1600XL

Note: These Hydros foil packs are good for Wingfoil, Kite, Wake, and XXL Waves – this is not a windsurfing hydrofoil.

Hydros is delivered with three shims, Zero, One.Five & Two.Five. Shims are needed to adjust and control the Angle Of Attack (AOA) of the back wing. Shims help dictate the amount of lift we will achieve from the back wing. The bigger the AOA the most Lift we will have, the smaller the AOA the most speed you will achieve. These should be chosen in relation to the size of the front wing that is being used.

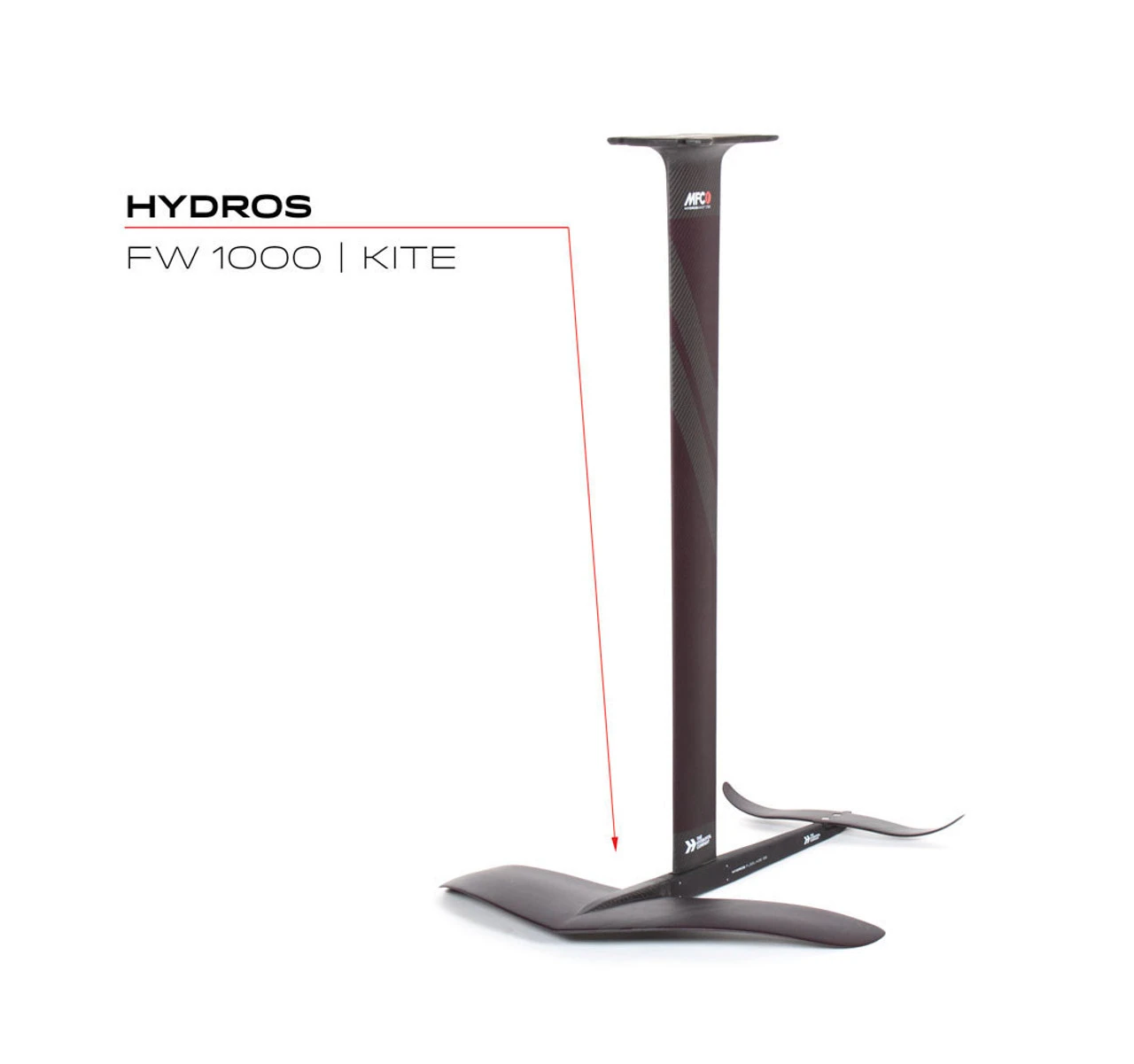

Hydros 1000 Foil Set

Includes:

• Premium Travel Bag
• FW1000
• Fuselage 58
• BW200
• Mast92
• Shims
• Hardware

The FW1000 was designed for kite foiling and it is extremely good for WingFoiling. Perfect for surfing waves and for all types of free riding. This new design has tons of low end but is still capable of reaching high speeds under perfect control. The FW1000 is extremely stable but very loose. Turn it on a dime or lock it in and go, it has great glide and control. Perfect for jumping and landing with confidence.

For expert surfers only, It also been tested in XXL Surf, reaching high speeds with extreme stability on large size waves. The HYDROS is Built in Carbon/PCS/Epoxy Technology and weights about 2.9kg.

Features

MAST C92: The profile allows control, speed and no drag at all. Not much lift is generated by the mast itself, everything is concentrated on the wings. Our technology allowed the mast to reach maximum stiness and no torsion for speed, control, carving. The attachment to the board is a full Carbon/Epoxy molded plate with plate recess of 2mm to allow the mast to fit in perfectly. RTM Technology built with Carbon/Epoxy G33 Bio Resin. Length of 70cm. — Weight || 1.20Kg

FUSELAGE C58: Aluminum built, FW and Mast attachment are conic to allow a perfect and precise fitting. It comes in a length of 58cm. —Weight || 500gr

FRONT WINGS | FW 1000: Our Front Wing generates a lot of gradual lift and they are very easy to control. Built with our Mold Technology with Carbon Twill, PVC core and G33 Bio Resin, it is one of the most advanced wings on the market. It reaches an excellent top speed allowing continuous turns with not much effort, keeping gliding. It’s V shapes allows easier turns keeping speed and gliding with low effort. For surfers from 180lb and up. Also for very small waves. Built in Carbon/PCS/Epoxy technology, and designed with one of the thinnest profiles. — Weight: 1.10kg | Wingspan 62cm

BACK WING | BW 200: Built in Full Carbon — Weight || 180gr

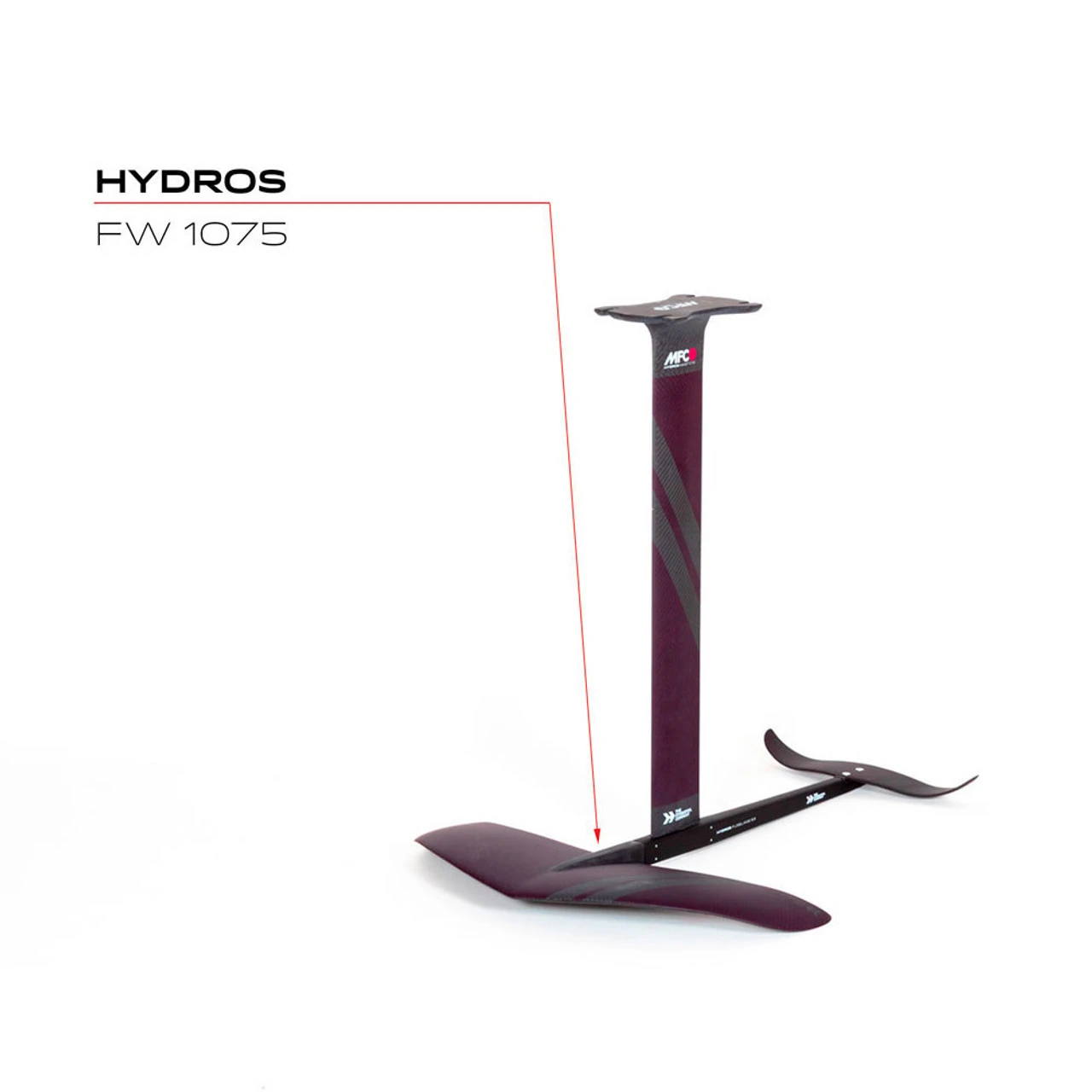

Hydros 1075 & 1075XL Foil Set

Includes:

• Premium Travel Bag
• FW1075
• Fuselage 63
• BW225
• Mast C70 // Mast C82 (XL Pack)
• Shims
• Hardware

The Hydros FW1075 front wing generates gradual lift while maintaining ease of control in bigger, more critical waves. When it reaches top speed, it allows for continuous turns with minimal effort, while maintaining glide. The HYDROS is a very fast hydrofoil. Designed for surfers under 180lb, the HYDROS is built in Carbon/PCS/Epoxy Technology and weights 2,78kg.

Features

MAST C70 OR MAST C82: The profile allows control, speed and no drag at all. Not much lift is generated by the mast itself, everything is concentrated on the wings. Our technology allowed the mast to reach maximum stiness and no torsion for speed, control, carving. The attachment to the board is a full Carbon/Epoxy molded plate with plate recess of 2mm to allow the mast to fit in perfectly. RTM Technology built with Carbon/Epoxy G33 Bio Resin. Length of 70cm. — Weight || 1.20Kg

FUSELAGE: Aluminum built, FW and Mast attachment are conic to allow a perfect and precise fitting. It comes in a length of 63cm. —Weight || 500gr

FRONT WING | FW 1075: Our Front Wing generates a lot of gradual lift and they are very easy to control. Built with our Mold Technology with Carbon Twill, PVC core and G33 Bio Resin, it is one of the most advanced wings on the market. It reaches an excellent top speed allowing continuous turns with not much effort, keeping gliding. It’s V shapes allows easier turns keeping speed and gliding with low effort. Built in Carbon/PCS/Epoxy technology, and designed with one of the thinnest profiles. For surfers up to 180lb. — Weight: 1.10kg | Wingspan 65.3cm

BACK WING | BW 225: Built in Full Carbon — Weight || 180gr

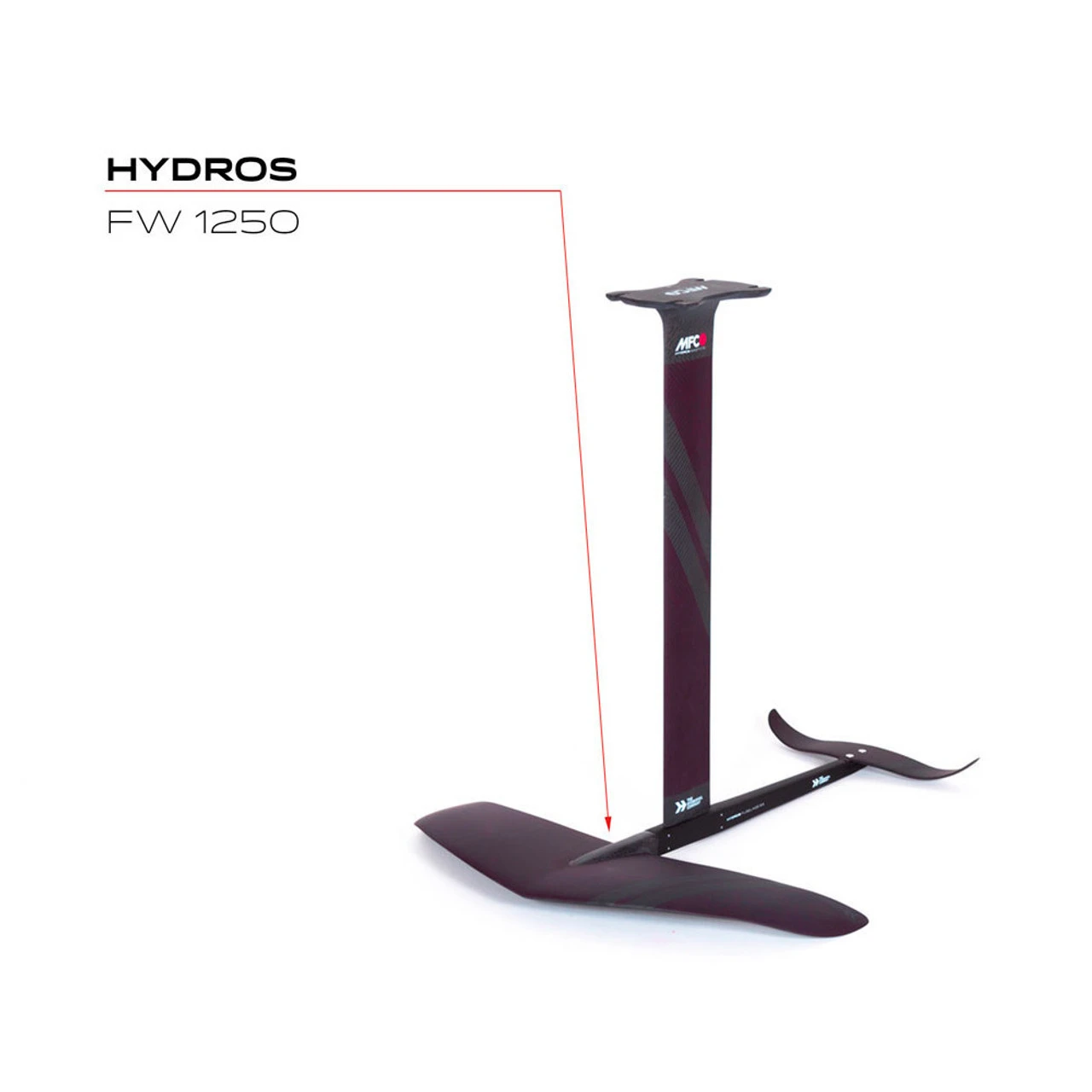

Hydros 1250 & 1250XL Foil Set

Includes:

• Premium Travel Bag
• FW1250
• Fuselage 63
• BW225
• Mast C70 // Mast C82 (XL Pack)
• Shims
• Hardware

The Hydros FW1250 generates a lot of gradual lift while maintaining good control for beginner riders or riders over 180lbs or for foiling in smaller waves. The Hydros FW1250 provides continual gliding with minimal wave power, smooth turns and good speed that keeps you going even in less than ideal conditions. The HYDROS is built in Carbon/PCS/Epoxy Technology and weights 2,98kg

Features

FRONT WINGS | FW 1250: Our Front Wing generates a lot of gradual lift and they are very easy to control. Built with our Mold Technology with Carbon Twill, PVC core and G33 Bio Resin, it is one of the most advanced wings on the market. It reaches an excellent top speed allowing continuous turns with not much effort, keeping gliding. It’s V shapes allows easier turns keeping speed and gliding with low effort. For surfers from 180lb and up. Also for very small waves. Built in Carbon/PCS/Epoxy technology, and designed with one of the thinnest profiles. — Weight: 1.10kg | Wingspan: 72cm

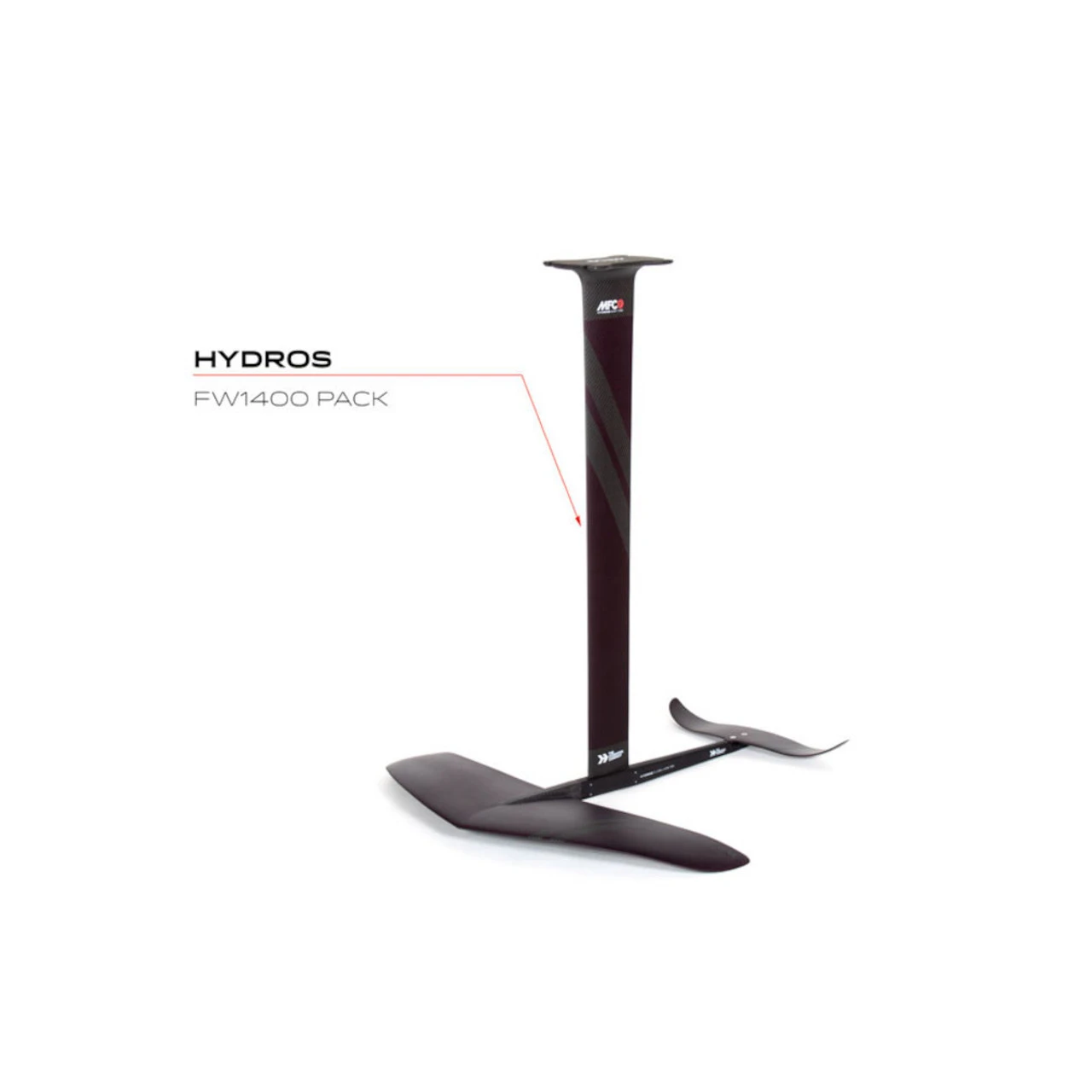

Hydros 1400 & 1400XL Foil Set

Includes:

• Premium Travel Bag
• FW1400
• Fuselage 63
• BW225
• Mast C70 // Mast C82 (XL Pack)
• Shims
• Hardware

The Hydros FW1400 generates a lot of gradual lift while maintaining good control for beginner riders or riders over 180lbs or for foiling in smaller waves. The Hydros FW1400 provides continual gliding with minimal wave power, smooth turns and good speed that keeps you going even in less than ideal conditions. The HYDROS is built in Carbon/PCS/Epoxy Technology and weights 2,98kg.

Features

FRONT WINGS | FW 1400: Our Front Wing generates a lot of gradual lift and they are very easy to control. Built with our Mold Technology with Carbon Twill, PVC core and G33 Bio Resin, it is one of the most advanced wings on the market. It reaches an excellent top speed allowing continuous turns with not much effort, keeping gliding. It’s V shapes allows easier turns keeping speed and gliding with low effort. For surfers from 180lb and up. Also for very small waves. Built in Carbon/PCS/Epoxy technology, and designed with one of the thinnest profiles. — Weight: 1.10kg | Wingspan: 78cm

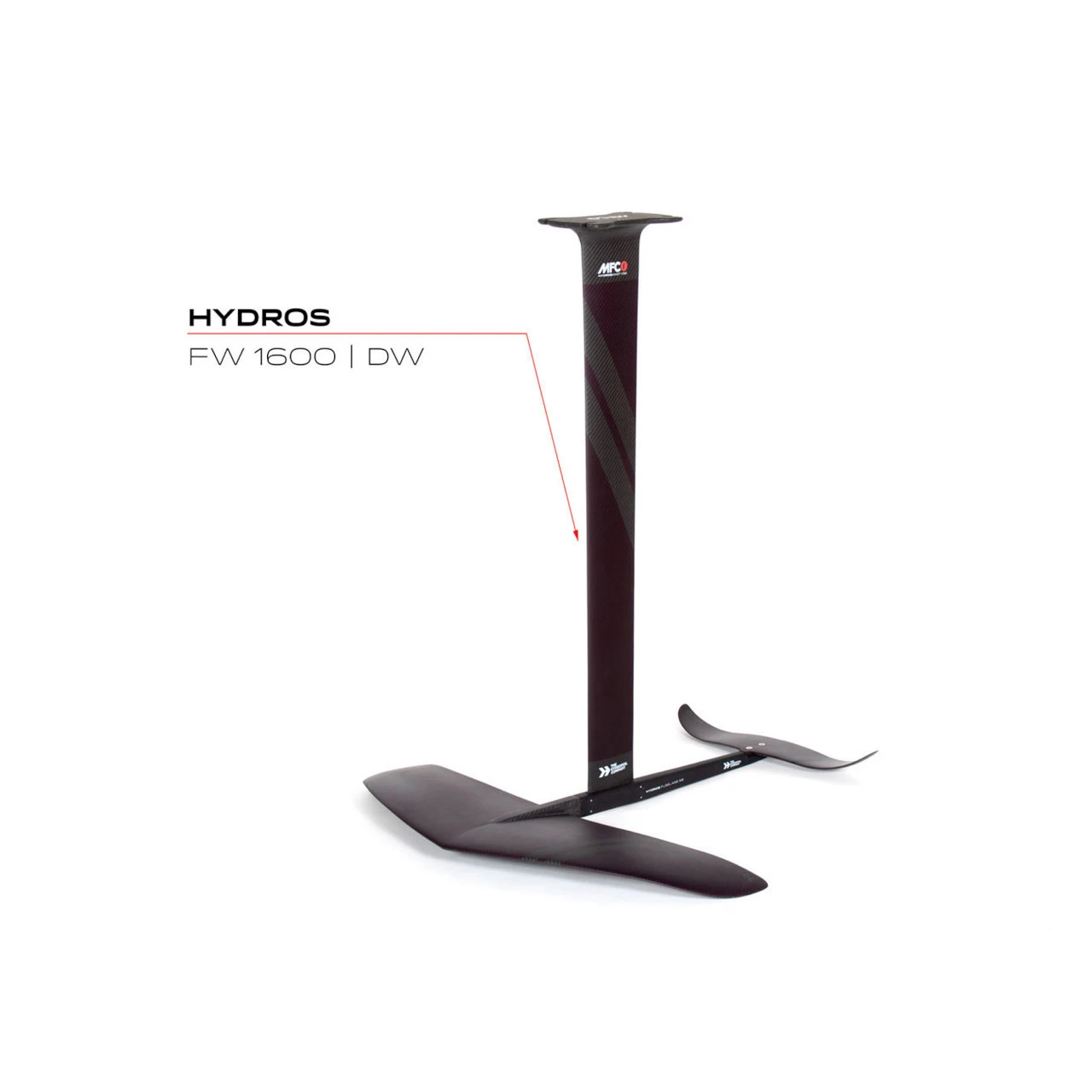

MFC Hydros 1600 & 1600XL Foil Set

Includes:

• Premium Travel Bag
• FW1600
• Fuselage 63
• BW300
• Mast C70 // Mast C82 (XL Pack)
• Shims
• Hardware

The Hydros FW1600 Pack was designed for heavier surfers, as well as for going downwind fast… Very fast! This is an extremely stable version of the HYDROS. This Model allows for total control at Maximum speed. The large wing and long mast on the FW1600 makes it a gliding and pumping machine while maintaining its superior turning ability. Pump on flat water or glide for miles on a downwind run. This HYDROS model is ideal for heavier surfers who love riding hydrofoils on waves. The HYDROS is built in Carbon/PCS/Epoxy Technology and weighs about 3.5kg.

Features

FRONT WINGS | FW 1600: Our Front Wing generates a lot of gradual lift and they are very easy to control. Built with our Mold Technology with Carbon Twill, PVC core and G33 Bio Resin, it is one of the most advanced wings on the market. It reaches an excellent top speed allowing continuous turns with not much effort, keeping gliding. It’s V shapes allows easier turns keeping speed and gliding with low effort. For surfers from 180lb and up. Also for very small waves. Built in Carbon/PCS/Epoxy technology, and designed with one of the thinnest profiles. — Weight: 1.10kg | Wingspan 85cm

BACK WING | BW 300: Built in Full Carbon — Weight || 180gr
