Stringfellow Adaptor Plate

Stringfellow Adaptor Plate

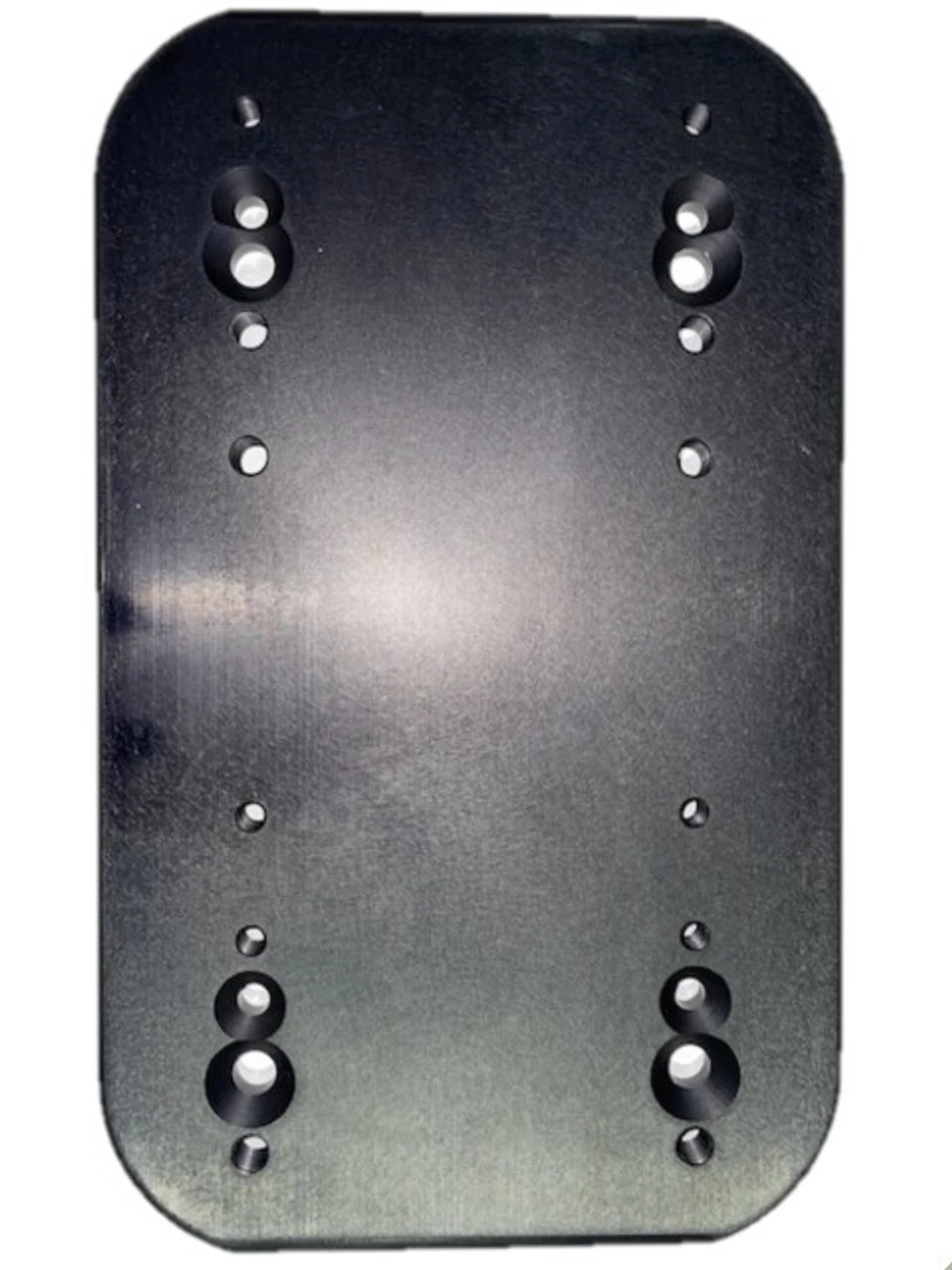

Ever been frustrated with the lack of compatibility between foils and boards? Us too, and we finally have a solution for you! This plate is designed to accommodate a fixed foil mount board.

If you have an inflatable F-one board this is the perfect solution to make any foil work on your board.

IMPORTANT: Finding Hardware

• Board to plate connection: Board to plate connection is the same hardware supplied with the foil for a track style board. You’ll need a countersunk style screw if it is not already. For insert fixed pattern boards, use normal screw length minus 10mm.
• Plate to foil connection is 10mm less than the standard mounting screw length.
• Our website has common foil screws available by spec. They ship for free with your adapter purchase.

This plate is compatible with boards with the following mounting specifications:

• M6 90x165mm
• M6 90x140mm
• M6 90x160mm
• M8 90x165mm
• M8 90x140mm

This plate is compatible with foils with the following mounting specifications:

• M6 90x165mm
• M6 90x140mm
• M8 90x165mm
• M8 90x140mm

Brand Spacing Specifications

Brand	Spacing (Wide)	Spacing (Middle)	Spacing (Narrow)
Slingshot	165 x 90	120 x 90
GoFoil	165 x 90
F-One	165 x 90	160 x 90
NP	140 x 90
Axis	165 x 90	140 x 90	115 x 90
Takuma	165 x 90
MFC	150 x 90
Naish	165 x 90
